By Ben Uyeda

EP83 Concrete Doghouse

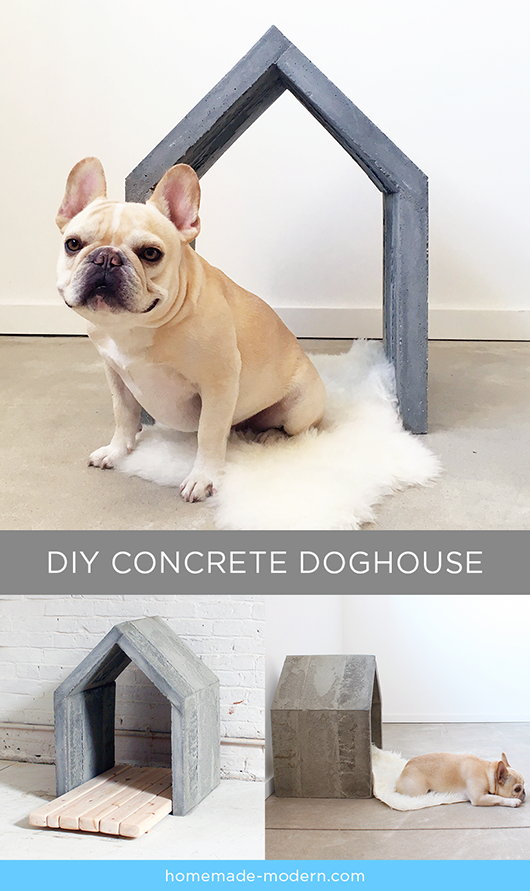

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete wouldn't push the thin Masonite out. I used 1.25 bags of Quikrete Countertop Mix in grey. The finished doghouse weighs about 100lbs. I would refer to the strength test I did with the Lego-formed nesting tables regarding reinforcement.

SUPPLIES:

HomeMade Modern2x4s
Available at the Home Depot
I used scrap 2x4s to make the bottom and sides of the mold.

HomeMade Modern1/8" Masonite
Available at the Home Depot
I used 1/8” Masonite for the sides of the mold.

HomeMade Modern DIY Commercial Grade Quikrete Countertop Mix
HomeMade ModernQuikrete Countertop Mix
Available at Home Depot
I used 1.25 bags of Quikrete Countertop Mix in grey. It's not typically in-stock, so you'll have to order it for pick up.



TOOLS:

HomeMade Modern DIY RYOBI ONE+ 18-Volt AirStrike Cordless Brad Nailer

HomeMade ModernRYOBI ONE+ 18-Volt AirStrike Cordless Brad Nailer
Available at Home Depot






HomeMade Modern DIY RYOBI Table Saw

HomeMade ModernRYOBI Table Saw
Available at Home Depot






HomeMade Modern DIY RYOBI Compound Miter Saw

HomeMade ModernRYOBI Compound Miter Saw
Available at Home Depot






HomeMade Modern DIY RYOBI ONE+ 18-Volt Compact Drill

HomeMade ModernRYOBI ONE+ 18-Volt Compact Drill
Available at Home Depot






HomeMade Modern DIY RYOBI Orbital Sander

HomeMade ModernRYOBI Orbital Sander
Available at Home Depot





INSTRUCTIONS:


STEP 1: Set Compound Miter Saw to 45º
I set my compound miter saw to 45 degrees.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.



STEP 2: Cut 2x4s at 45º
I cut the 2x4s so that one end of each piece was cut at a 45 degree angle. Trim the length later.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.



STEP 3: Rip the 2x4s on the Table Saw
I wanted one of the sides of the 2x4s to be flat, so I ripped them on the table saw and removed about 1/2".

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.



STEP 4: Cut 2x4s to Length
I cut the 2x4s to length to make the pieces for the bottom of the mold.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.



STEP 5: Use Brackets to Make the Bottom Frame
I used steel brackets to connect the 2x4 pieces to make the bottom frame for the mold. I screwed the brackets onto the rounded side of the 2x4 so that the flat side that I ripped would face up and serve as the bottom of the mold.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.



STEP 6: Screw on the Sides of the Mold
I used brackets and a square to screw on 2x4s to make the ends of the mold.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.



STEP 7: Paint the 2x4s
I used high gloss latex house paint to coat the 2x4s. The paint keeps the wood from absorbing water away from the wet concrete.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.



STEP 8: Attach the Masonite
I used my cordless brad nailer to attach the Masonite to the 2x4 frame. Screws would work too, but the nail gun is faster.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.



STEP 9: Reinforce the Mold
The wet concrete puts a lot of pressure on the Masonite, so I reinforced the mold with duct tape, a hot glue gun and additional 2x4 blocks nailed to the masonite.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.



STEP 10: Pour the Concrete in Layers
I wanted to minimize the amount of wet concrete pushing on the mold, so I poured the doghouse in three layers with 20 hours in-between pours. I used a stick to push and vibrate the wet concrete all the way down into the corners of the formwork.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.



STEP 11: Remove the Form
Once the final layer of concrete has cured for 20 hours, rip off the Masonite panels and remove the doghouse.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.



STEP 12: Clean It Up
Some paint gets stuck to the concrete, so sand that off.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.



STEP 13: Build a Floor
I made a nice little deck out of scrap 2x3s and 2x2s that I sanded and screwed together. However, the little Frenchie who tested the house preferred a nice sheepskin rug for his floor.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

This modern concrete doghouse is made out of Quikrete Countertop Mix poured into a mold made out of 2x4s and Masonite. I poured the concrete in layers so that the weight of the wet concrete would not push the thin Masonite out. For full instructions go to HomeMade-Modern.com.

Good luck with your concrete doghouse and please email or tweet photos to @benuyeda or ben@homemade-modern.com.

If you want to see what we're working on next, follow us on Instagram @benjaminuyeda.

Also check out our book for additional projects, DIY tips and guides.
